Knee Tilt Mechanism

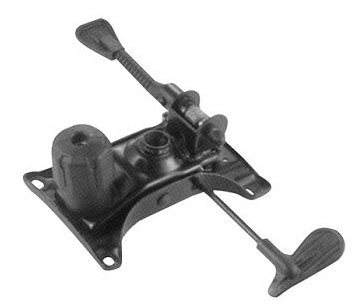

Mechanism For Chair MECH803

Mechanism For Chair MECH803

We are one of the Top largest manufacture for the chair bases, armrests, mechanism and other office chair parts in Anji Area, with sales turnover more than $15,000,000.

1.Good Chroming quality with BIFMA testing certificate

2.Good welding by Robots

3.Good packing to avoid the scratches during the transportation

4.Export to more than 50 countries with good reputation

Click to inquire

Detailed Product lnformation

ltem No:

MECH803
Material:Steel, thickness=2.5mm plate, 3.0mm body
Surface finish:Sand Polishing
Color:Black powder coating

Net Weight:

2.5 KGS/PC
Packing Way:Plastic bag+Carton
Assembling hole position:148*255mm
Locking Positions:Locking at any angles
Loading Ability (1*20GP):3680 PCS
MOQ:500PCS
Payment Term:T/T or L/C at Sight
Pass BIFMA Testing or not:YES

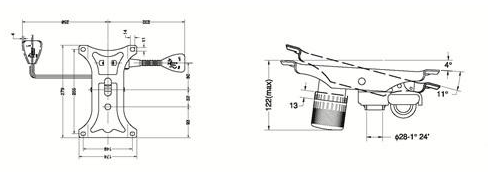

MECH801 DRAWING.jpg
